Santa Cruz

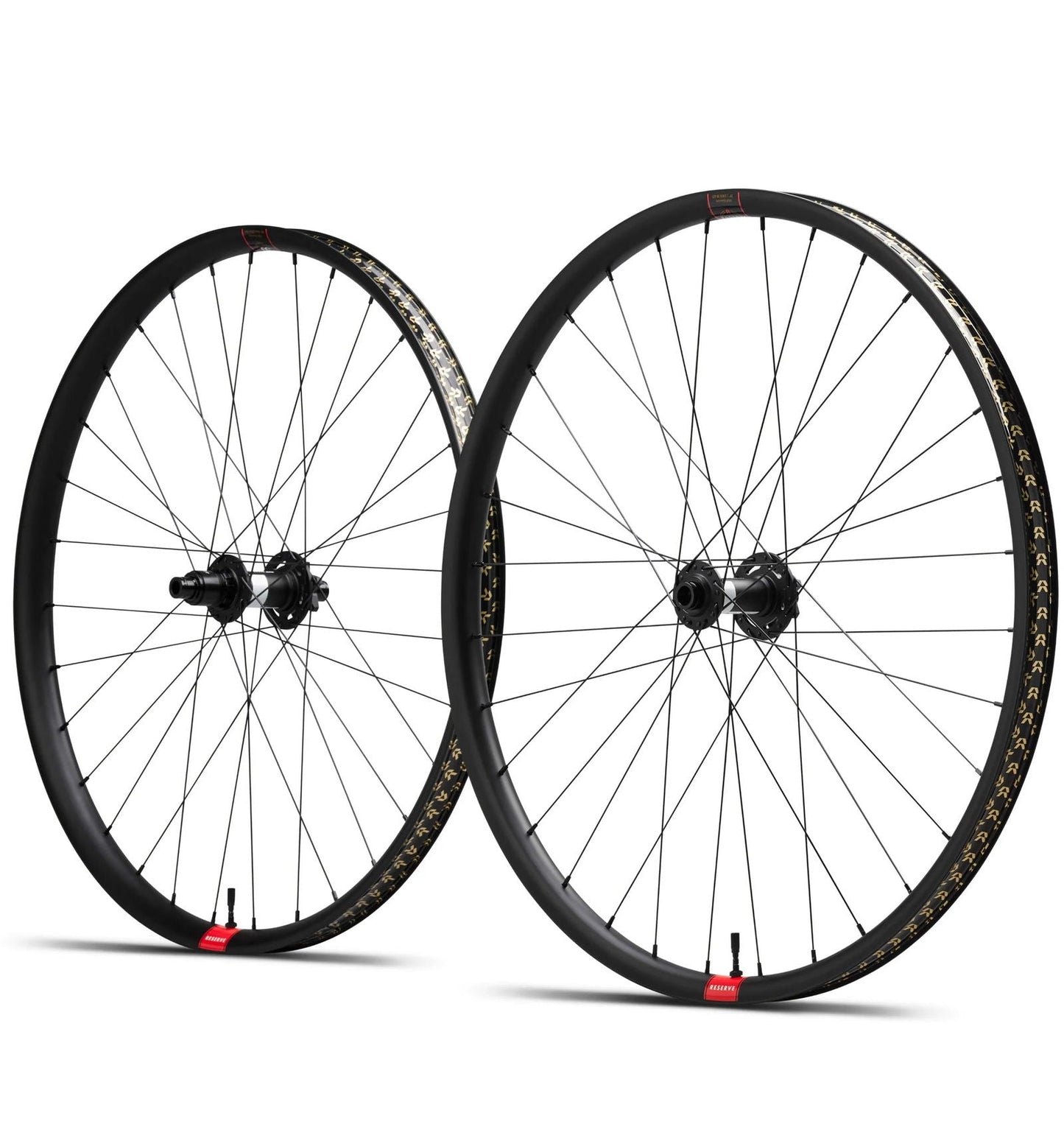

30|HD DH Aluminum Wheels
30|HD DH Aluminum Wheels
* Special orders typically ship within 2-3 weeks. If a longer wait is required, we will notify you. Please contact us with any questions.
*For additional hub models, BERD Spokes, spoke nipple colors and other options, please try our Interactive Wheel Builder!*
DH Spacing Rear: 157mm x 12mm / Front: 110mm x 20mm
Your wheels are arguably the most important component on your downhill bike, which is why we’ve developed the Reserve aluminum DH wheels.
Reserve aluminum wheels have been designed and developed to provide a product that rivals the performance of our much-loved carbon wheels, but at a much more accessible price point.
And with our industry-leading lifetime guarantee, you can feel confident you will be enjoying these wheels for years to come.
Details
| Designed For | DH Bikes, E-Bikes |
| E-Bike Approved | Yes |
| ERD | 596mm (29), 558mm (27.5) |
| Inner Width | 30mm |
| External Width | |
| Depth | 22mm |
| Spoke Count | 32 |
| Recommended Tire Dimensions | 2.4 to 2.6 |
| Freehub Options | XD, Microspline, HG |
| Disc Style Options | 6-Bolt |
| Hub Spacing | Boost 110X20/12X157mm |
| Rim Weight | 29 580g, 27.5 540g |
-
Spoke Reinforcements
Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.
-
Tested and Approved
With over a year of ride and lab testing, the 30|HD AL wheels are designed to withstand any abuse you can throw at them. Like all Reserve wheels, they are supported by a lifetime guarantee.
-
Asymmetrical Design
Asymmetrical rims, like those on the 30|HD AL, build stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.
