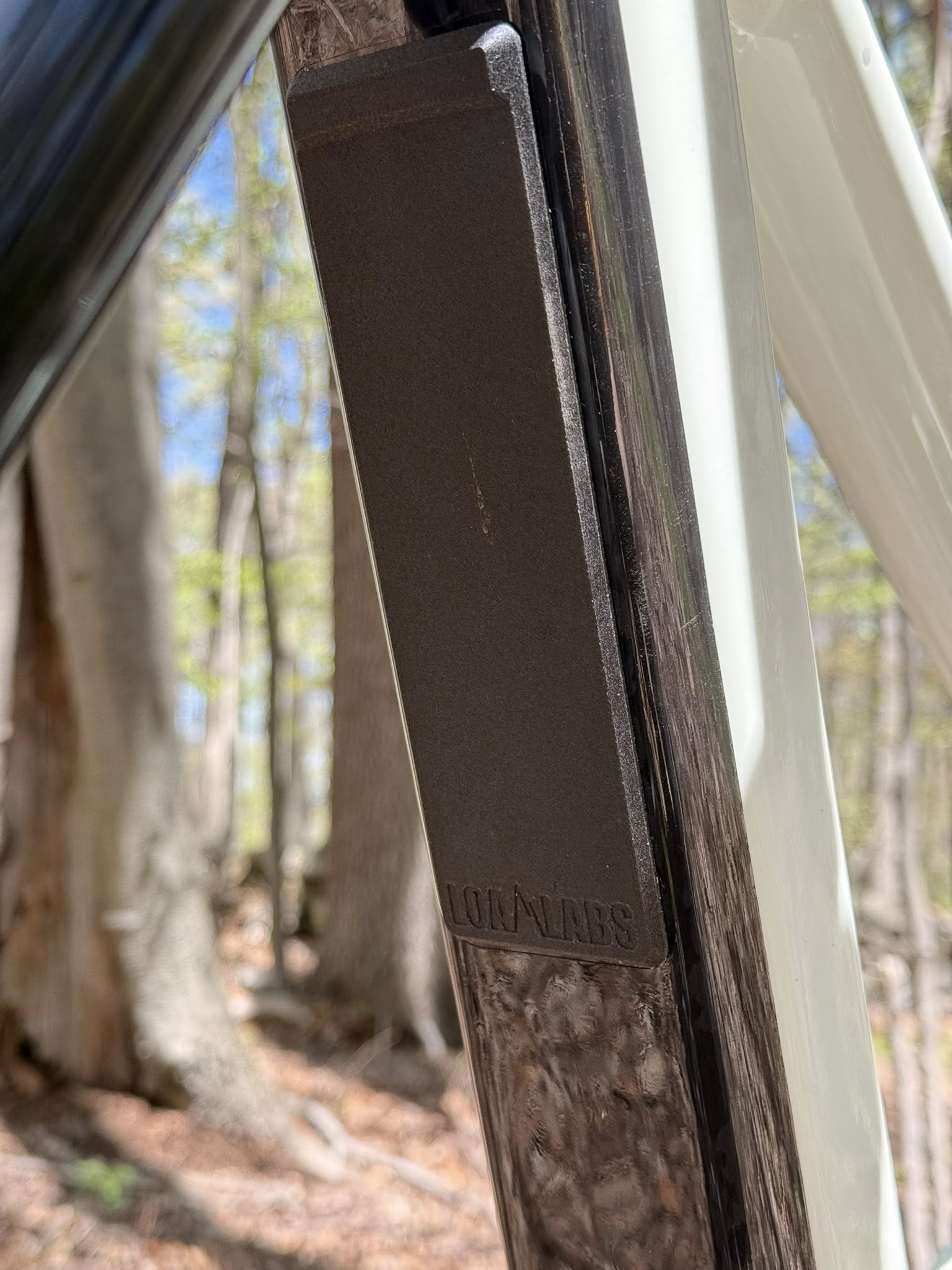

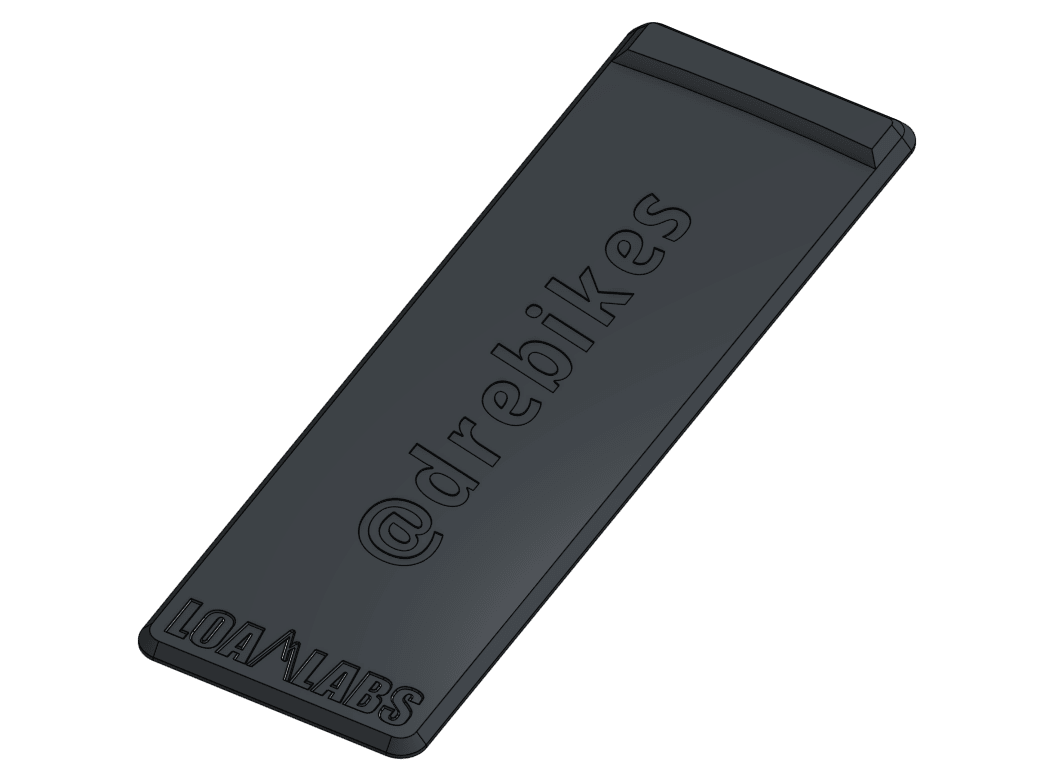

LoamLabs Custom Impact Shuttle Guard
The LoamLabs Shuttle Guard is the ultimate solution for heavy-duty downtube and tailgate protection. We custom-engineered this guard specifically to survive rowdy shuttle days and high-impact rock strikes without breaking a sweat. If you want seamless, stealthy armor that preserves your frame's factory finish, this is it.
Custom In-House Prints Available Now!
(1-2 day turnaround)
Every single guard is manufactured in-house to order, utilizing premium engineering-grade materials and industrial adhesives to guarantee a perfect bond and a lifetime of abuse on the trails.
LoamLabs
* Special orders for this item typically ship within 2-3 weeks. If a longer wait is required, we will notify you. Please contact us with any questions.
Get Notified When It's Back
LoamLabs Custom Impact Shuttle Guard
How to Order Custom Text: Select your Bike Model, Length, and change the Custom Text option to "Yes". Type your desired text directly into the input field that appears before adding the guard to your cart.
Strict Custom Character Limits:

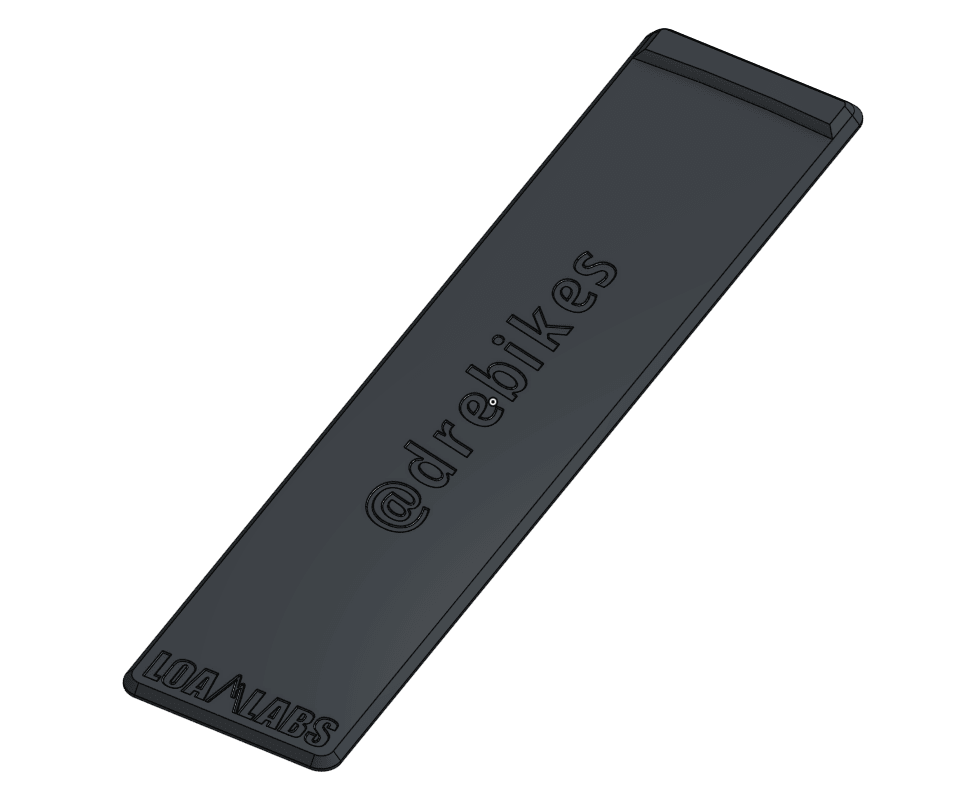

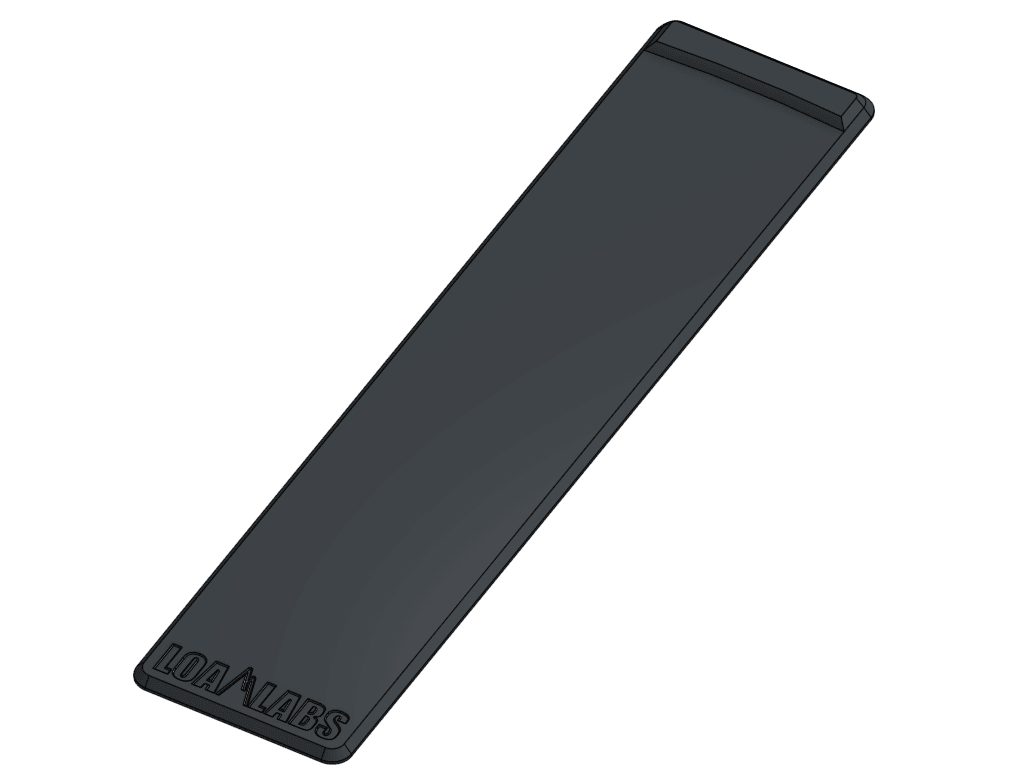

- 245mm (Extended) – No Hole: Max 20 characters

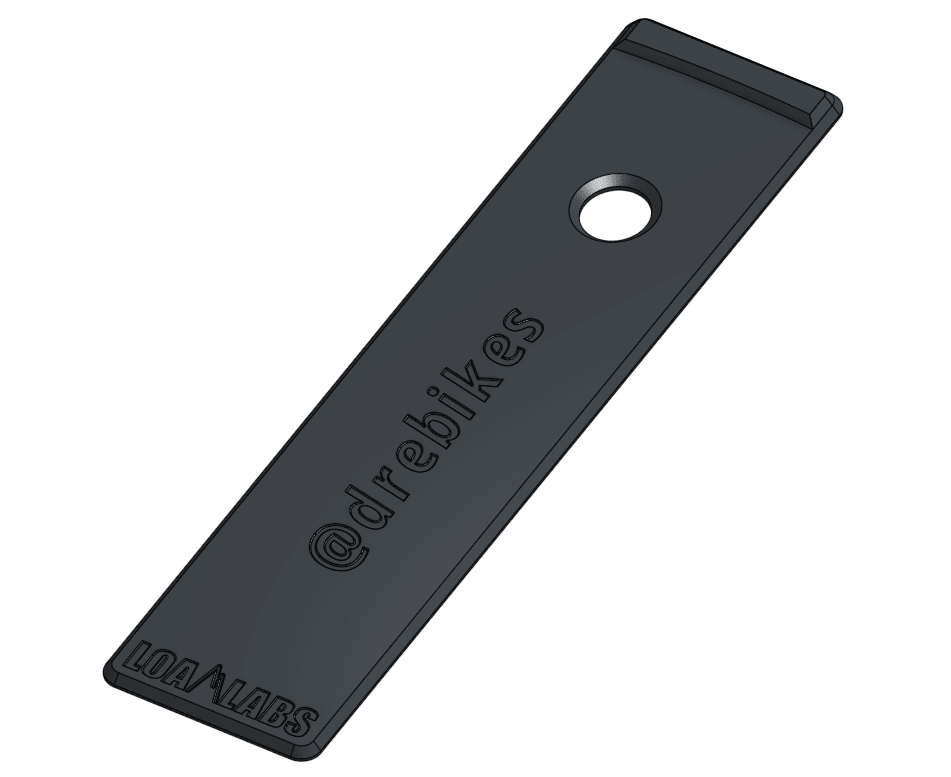

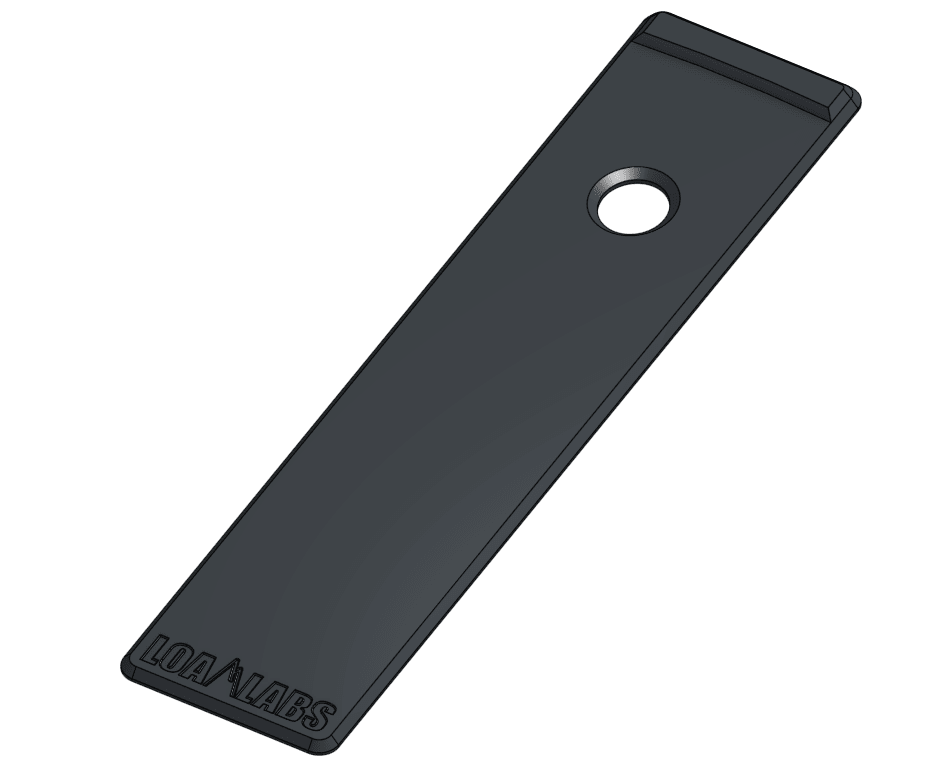

- 245mm (Extended) – With Hole: Max 16 characters

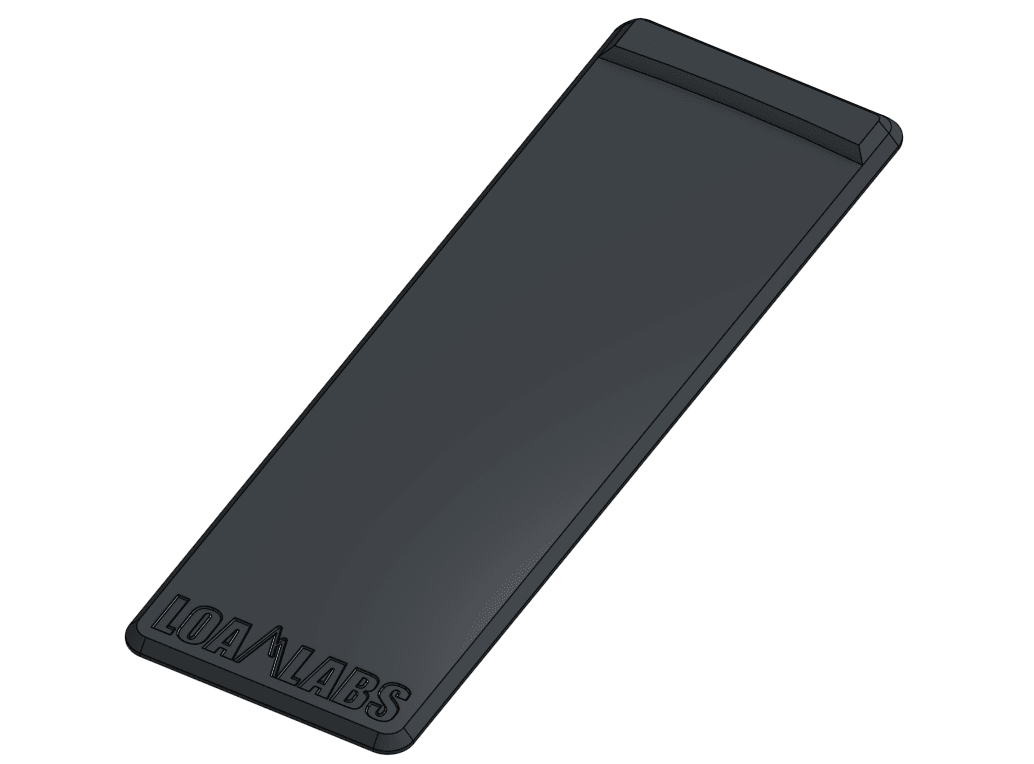

- 176mm (Standard) – No Hole: Max 14 characters

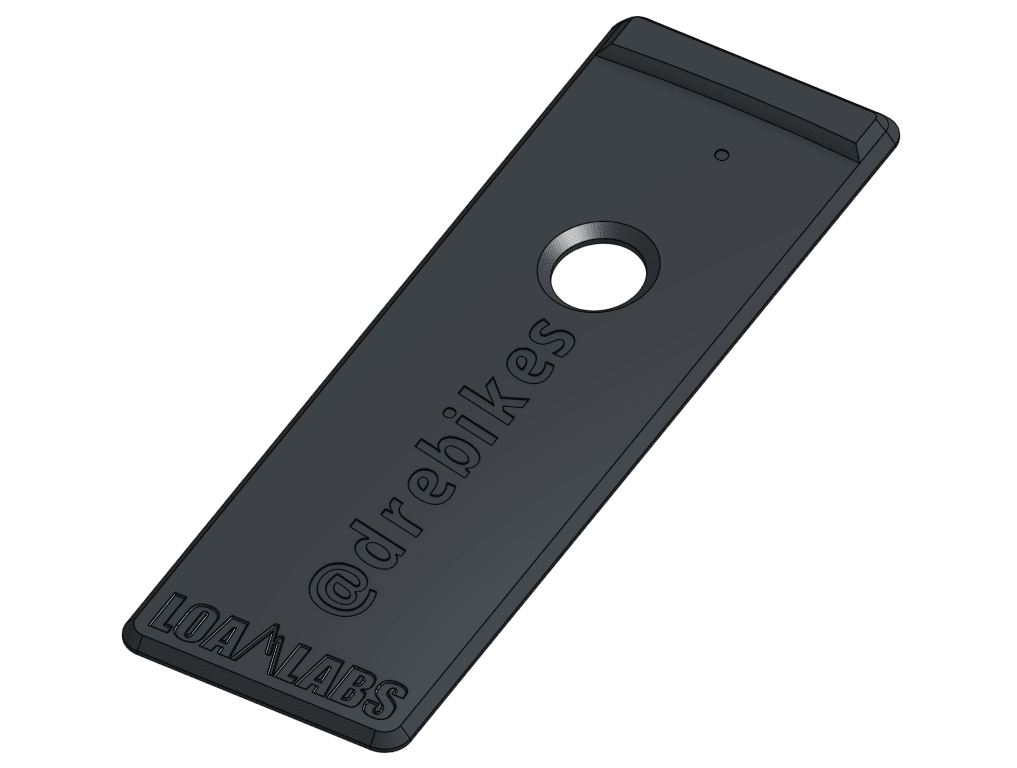

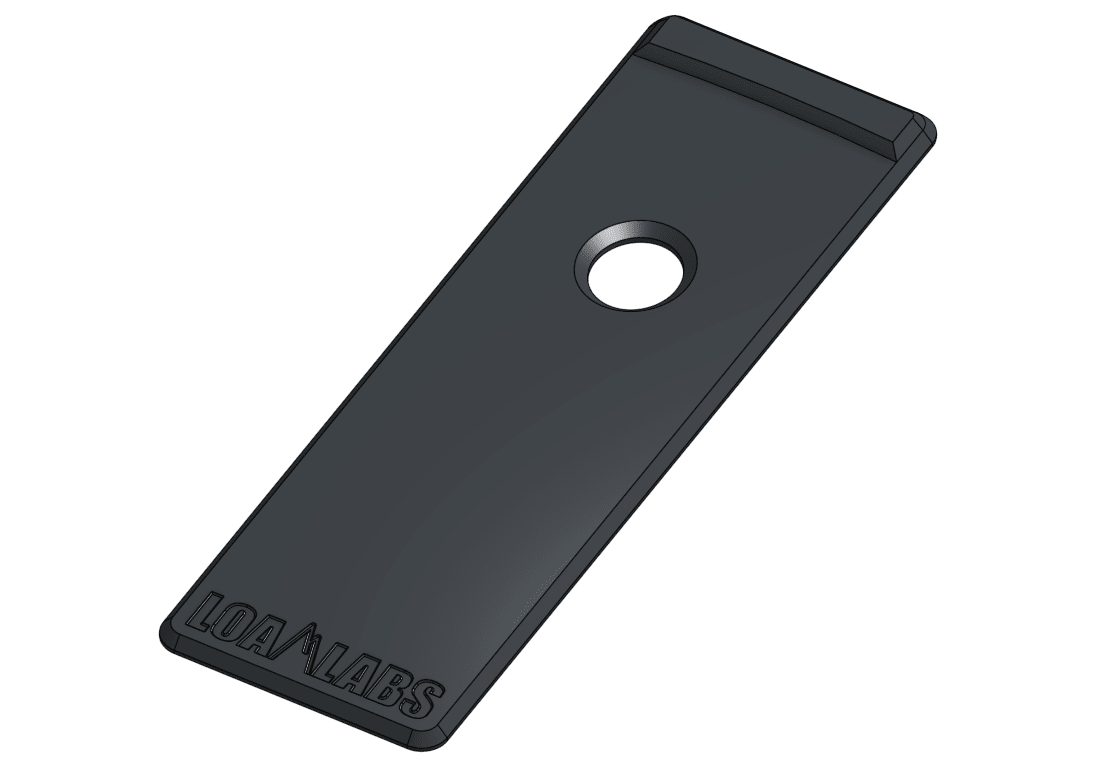

- 176mm (Standard) – With Hole: Max 10 characters
Installation & Care
Installation & Care
Because the genuine 3M 300LSE adhesive is formulated for an industrial-strength, unyielding bond, proper surface preparation is critical. Follow these simple steps for a perfect application:
- Prep the Surface: Clean the lower downtube thoroughly with isopropyl alcohol to remove all mud, grit, wax, or bike wash residue. Ensure the frame is completely dry.
- Dry Test-Fit: Before peeling the adhesive backing, press the guard firmly against your frame to check alignment with any existing protection (like Ride Wrap) or frame bolt holes.
- Apply & Bond: Peel away the protective 3M backing liner. Align one edge first, then press the guard down firmly from the center outward to displace any trapped air.
Pro Tip: 3M 300LSE reaches 90% bond strength after 20 minutes, but takes a full 24 hours to cure completely. For maximum durability, let the bike sit overnight before loading it onto a tailgate pad or hitting rowdy trails.
Technical Specifications
- Designed For: Heavy-Duty Tailgate & Frame Protection
- Material: Fiberon PA12-CF10 (Polyamide 12 reinforced with 10% Chopped Carbon Fiber)
- Adhesive Interface: Pre-applied Genuine 3M 9474LE 300LSE Double-Sided Transfer Tape
- Base Thickness: High-impact absorbing profile engineered to disperse blunt rock strikes
- Finish: Premium, raw matte carbon stealth finish
- Frame Compatibility: Form-fit options engineered specifically per individual bike platform
Key Features
Bespoke Engineering: We don’t make universal parts that half-fit. Each guard is meticulously modeled to follow the exact individual contours of your frame's downtube, providing maximum surface area contact for an unyielding fit.
Fiberon PA12-CF10 Technology: This isn't generic 3D printer plastic. By utilizing a carbon-fiber reinforced nylon matrix, this guard delivers incredible structural tensile strength, exceptional chemical and UV resistance, and impact-dampening qualities that easily outperform raw plastic molded alternatives.
Uncompromising 3M 300LSE Bond: Mountain bike frames are subjected to absolute torture—mud, grit, freezing temps, and high-pressure washers. The pre-applied industrial 3M 300LSE transfer tape is specifically formulated to create a permanent bond to low-surface-energy substrates, raw carbon, and matte paint finishes so it stays put until you decide to remove it.
