Reserve 30|GR Aluminum Gravel Wheelset
The LoamLabs Expert Take
The Reserve 30|GR Aluminum wheelset is our top recommendation for riders seeking a bombproof, high-value gravel wheelset without compromising on performance. It features the same proven rim profile as its carbon sibling but in a durable and reliable aluminum construction. This is the perfect choice for rugged adventures, bikepacking, and everyday gravel riding.
All DT Swiss Hub Options In Stock!
(Please follow us on Instagram @loamlabs for real-time updates)
We sometimes build these wheels in-house to the manufacturer's exact specifications using sourced components, ensuring availability even when the manufacturer is backordered.
For additional options, custom hubs, and spoke nipple colors, please try our interactive Custom Wheel Builder!
Reserve
Reserve 30|GR Aluminum Gravel Wheelset
Reserve 30|GR Aluminum Gravel Wheelset
* Special orders for this item typically ship within 2-3 weeks. If a longer wait is required, we will notify you. Please contact us with any questions.
Get Notified When It's Back
Reserve 30|GR Aluminum Gravel Wheelset
Built for the adventurous rider who demands absolute reliability, the Reserve 30|GR AL is a tough, adventure-ready aluminum gravel wheelset designed to conquer rough terrain and heavy bikepacking loads. By mirroring the highly successful profile of their carbon counterparts, Reserve has crafted a premium alloy wheelset that balances off-road comfort with exceptional durability.

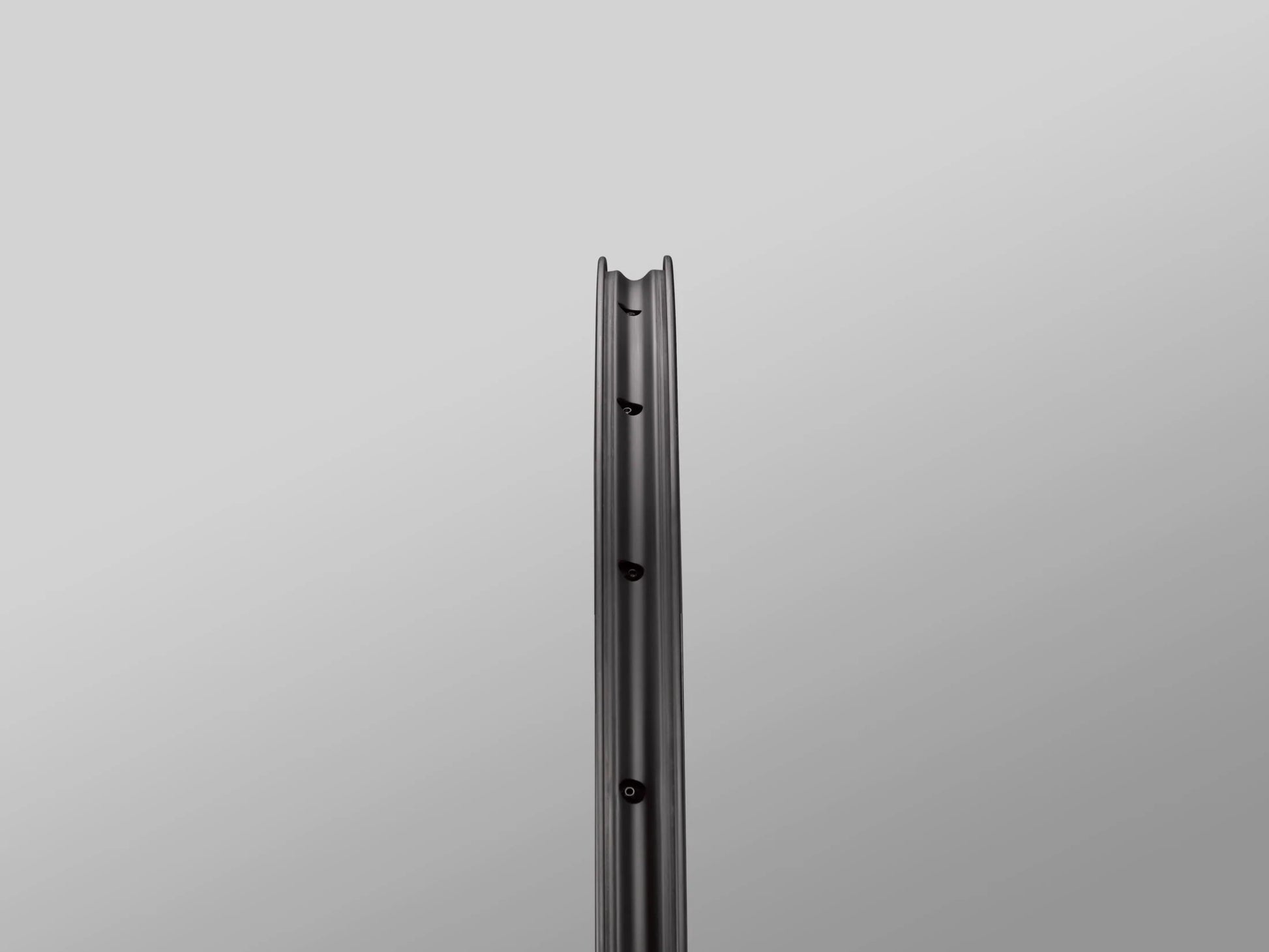

Featuring a 30mm rim depth and a generous 27mm internal width, the 30|GR AL is perfectly optimized to support modern high-volume gravel and cyclocross tires ranging from 30c to 50c. The asymmetrical rim design creates a stiffer, stronger wheel, while the semi-hooked bead ensures that seating tubeless tires is completely hassle-free.
Laced to bombproof DT Swiss 350 hubs (12x100mm Front / 12x142mm Rear), this wheelset is designed to go the distance—no matter where the trail leads. And true to Reserve's ethos, these wheels come with zero rider weight limits, zero tire brand restrictions, and an industry-leading lifetime warranty with no-fault crash replacement.
Technical Specifications
- Designed For: Gravel Riding, Gravel Racing, and Cyclocross (CX)
- Wheelset Weight: 1645g (with DT Swiss 350)
- Depth: 30mm
- Internal Width: 27.0mm
- External Width: 30.4mm
- ERD: 578mm
- Asymmetrical Offset: 3.0mm
- Spoke Count: 24h
- Recommended Tire Size: 30c to 50c
- Hub Spacing: 12x100mm Front / 12x142mm Rear
- Brake Interface: Centerlock
- Freehub Options: SRAM XDR, Shimano HG-EV
Key Features
Asymmetrical Design: Asymmetrical rims on both the front and rear make for a significantly stiffer, stronger, and more reliable wheel build. By improving the bracing angles and equalizing the spoke tension between the drive and non-drive sides, the wheel can easily handle aggressive cornering and heavy bikepacking loads.
Optimized Rim Profile: Reserve's specific rim bed shape dramatically eases tubeless installation. The design utilizes offset spoke holes that allow the tire to easily push past the bead bump, ensuring a safe, rapid, and secure tubeless seating process.
No Fuss Design: The 30|GR AL is your ultimate hassle-free aluminum gravel wheelset. Built with standard J-bend spokes, no rider weight limits, and no tire restrictions. They are compatible with both tubeless and tubed setups, and are backed by Reserve’s lifetime warranty for total peace of mind in the backcountry.
