Reserve E 30|HD 31|DH Carbon Wheelset
The LoamLabs Expert Take
This is Reserve's purpose-built solution for the extreme demands of modern mixed-wheel e-bikes. With a reinforced carbon layup and a heavy-duty hybrid construction, this MX wheelset is engineered to handle the increased motor torque and heavy chassis weight of an e-MTB. It's the ultimate upgrade for e-bike riders who need unmatched strength and reliability on the toughest trails.
Industry Nine Hub Builds Available In-House!
(Featuring the ultra-reliable I9 1/1)
We sometimes build these wheels in-house to the manufacturer's exact specifications using sourced components, ensuring availability even when the manufacturer is backordered.
For additional hub models, custom spokes, and custom nipple colors, please try our interactive Custom Wheel Builder!
Reserve
Reserve E 30|HD 31|DH Carbon Wheelset
Reserve E 30|HD 31|DH Carbon Wheelset
* Special orders for this item typically ship within 2-3 weeks. If a longer wait is required, we will notify you. Please contact us with any questions.
Get Notified When It's Back
Reserve E 30|HD 31|DH Carbon Wheelset

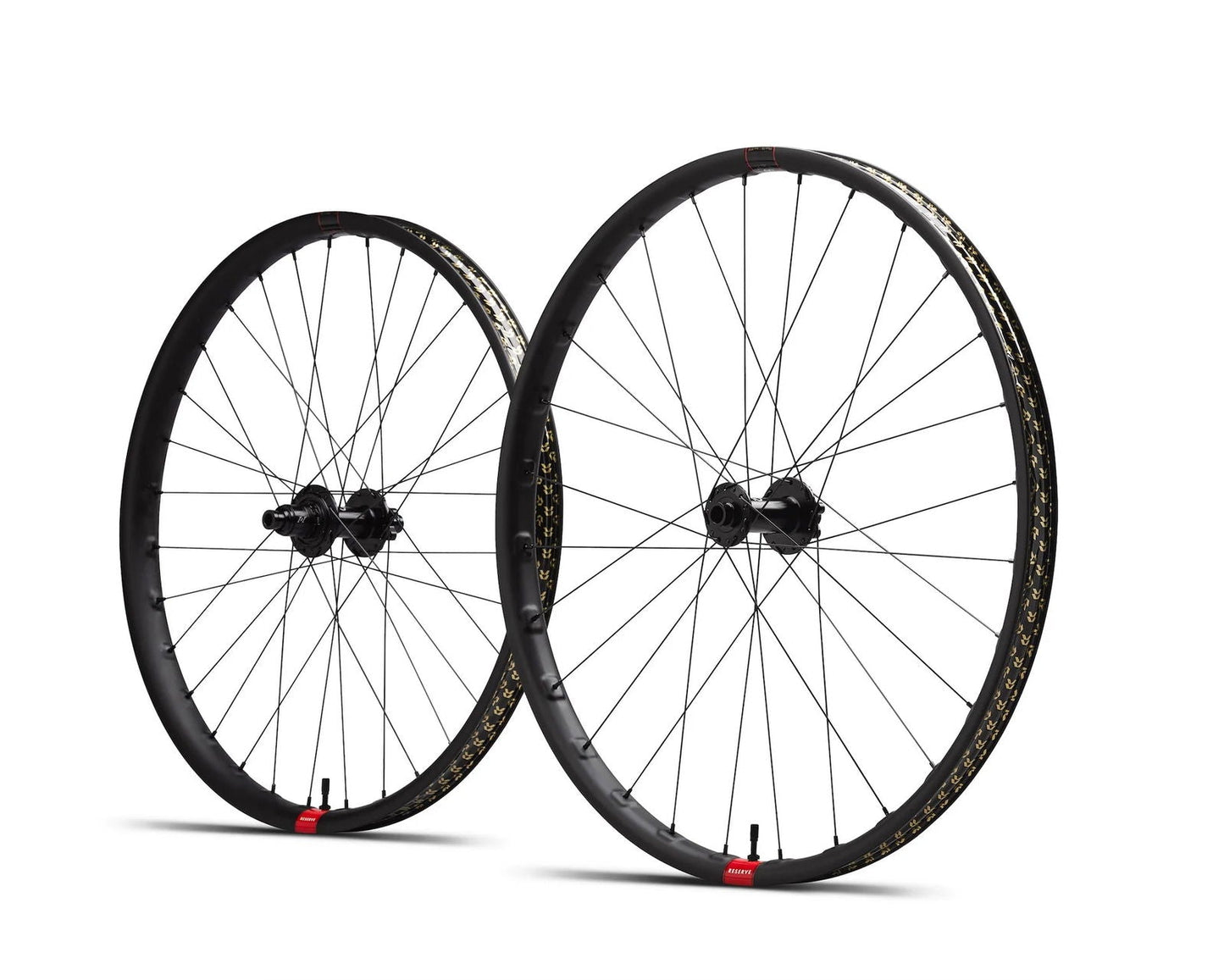

Specifically designed to conquer the brutal demands of mixed-wheel (MX / Mullet) e-MTBs, the Reserve E 30|HD 31|DH carbon wheelset delivers the ultimate balance of handling precision, massive durability, and motor-torque transfer.
This purpose-built hybrid pairs the highly responsive 29-inch 30|HD front wheel with the World Championship-proven, bombproof 27.5-inch 31|DH rear wheel. The larger front wheel maximizes rollover capability and front-end traction for squaring off aggressive turns, while the burly 27.5-inch rear wheel easily absorbs heavy e-bike impacts, delivers quick acceleration, and provides the "pop" needed to loft heavier e-bikes into the air.
With dedicated E-Bike approval, zero rider weight limits, and Reserve's legendary lifetime warranty, this mixed-wheel ecosystem gives you the absolute confidence to charge the inside lines and push your e-MTB to its limits.
Technical Specifications
- Designed For: E-Bike, Trail, All-Mountain, and Enduro
- E-Bike Approved: Yes
- Wheelset Weight: 1933g (with Industry Nine 1/1 Hubs)
- Internal Width: 30.0mm (Front) | 31.0mm (Rear)
- ERD: 598mm (Front 29" 30|HD) | 560mm (Rear 27.5" 31|DH)
- Spoke Count: 24h
- Recommended Tire Size: 2.3" to 2.6"
- Hub Spacing: Boost 15x110mm Front / 12x148mm Rear
- Brake Interface: 6-Bolt or Centerlock
- Freehub Options: SRAM XD, Shimano Microspline, Shimano HG
Key Features
Externally Reinforced Spoke Holes: Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most intense force (around the spoke nipple). This targeted carbon reinforcement provides massively improved pull-out strength against heavy e-bike torque without adding unnecessary rotational weight.
Asymmetrical Design: Asymmetrical rims on both the front and rear create a significantly stiffer, stronger, and more reliable wheel build. By improving the bracing angles and equalizing the spoke tension between the drive and non-drive sides, the wheel provides superior lateral stiffness under the heavy loads of an e-MTB.
Redesigned Rim Bed: The newly redesigned rim beds on both the 30|HD and 31|DH dramatically ease tubeless installation. The specifically shaped rim bed utilizes offset spoke holes that allow the tire to easily push past the bead bump, ensuring a safe, rapid, and secure tubeless seating process.
